Drain Air Testing Kit with 6" Test Plugs Bundle

Ensure accurate and reliable pressure testing of drains and sewers with this complete Air Test Kit and 6" Drain Test Plug bundle. Designed for professional drainage testing, this kit combines everything you need to carry out effective air pressure tests with the added convenience of 1 or 2 test plugs — ideal for both domestic and commercial drainage systems.

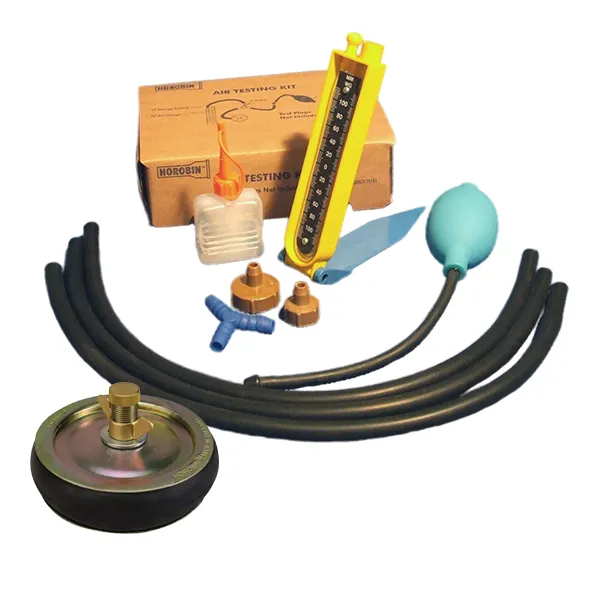

Whats Included in the Bundle?

• Air Test Kit:
  100mm 'U' Gauge (Manometer) with Manometer Tubing, Hand Bellows, 'Y' Piece Connector, 12.5mm and 25mm Test Nipples

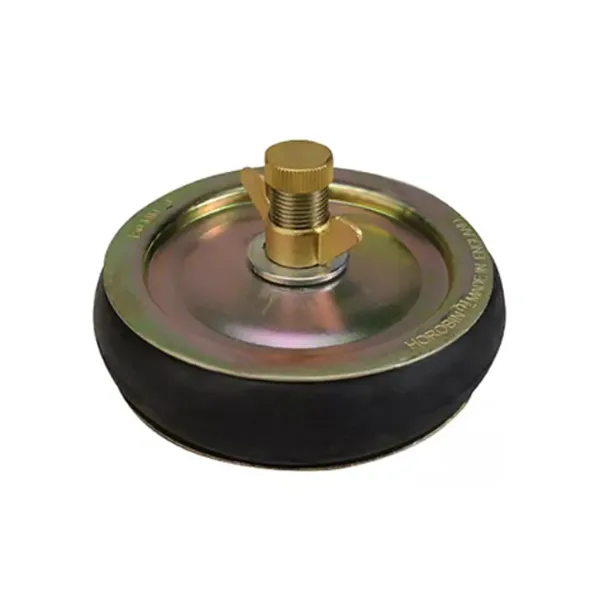

• 6" / 150mm Steel Drain Test Plug(s):
  Zinc-plated steel plates and Brass wingnut (corrosion resistant, secure adjustable fit), 1/2" outlet (suitable for pressure testing), Fits internal pipe diameters: 150mm - 160mm, Minimum insertion depth: 39.7mm, Maximum allowable back pressure: 10 p.s.i.

Choose between a bundle with 1 or 2 Drain Test Plugs — simply select your preferred option from the dropdown menu.

Why Choose This Air Test Kit and Drain Test Plug Bundle?

Complete Testing Solution

This all-in-one bundle provides both the Air Test Kit and the essential Drain Test Plug(s), ensuring you have everything required to carry out pressure tests on drainage systems. Whether you're testing drains, sewers, or pipelines, this kit simplifies the process — making it a must-have for plumbers, drainage engineers, and contractors.

Effortless Testing Process

1. Seal off the drain to be tested with the 6" Steel Drain Test Plugs, ensuring the pipe surface is clean and smooth.
2. Replace the Blanking Cap on one plug with the Nipple Cap.
3. Divide the Air Test Tubing into three lengths.
4. Fill the ‘U’ Air Gauge with water and level it at at zero.
5. Connect the Air Test Tubing to the Hand Bellows, Drain Test Plugs, and ‘U’ Air Gauge using the ‘Y’ Piece.
6. Pump the Hand Bellows until a pressure of 100mm (4") of water is shown on the gauge. Allow 5 minutes for air temperature to stabilise and adjust back to 100mm.
7. The water level should not drop by more than 25mm over a 5-minute period, without additional pumping.

Trusted by Professionals:

Widely used by drainage experts across the UK, this bundle is a go-to solution for conducting air pressure tests in line with industry practices for drains and sewers. It’s perfect for those working to test systems to standards such as BS8005 and EN1610.

Need the components separately? You can purchase the Air Test Kit here and the 6" test plugs here. Contact us if you need any further assistance.
